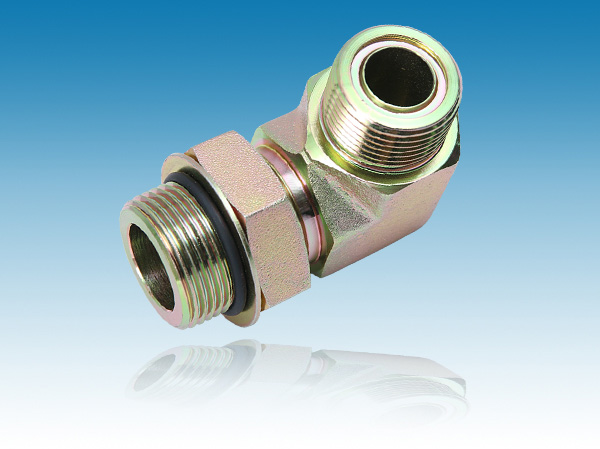

【產品名稱】 美制ORFS螺紋O型圈平面密封直角管接頭 FS6801系列
【所屬分類】 美制螺紋O型圈密封接頭 【產品型號】 FS6801 【產品品牌】 寧吉羽立 NJ 【生產廠家】 寧波市寧吉羽立流體設備有限公司
產品詳情
| PART NO SIZE | TUBE OD | A1 THREAD | B THREAD | A DRILL | B DRILL | M LGTH | N LGTH | C HEX | JJ FLATS |
| FS6801-04-04-NOW | 1/4 | 9/16-18 | 7/16-20 | 0.172 | 0.172 | 0.85 | 1.29 | 0.625 | 0.562 |
| FS6801-04-05-NOW | 1/4 | 9/16-18 | 1/2-20 | 0.172 | 0.236 | 0.85 | 1.29 | 0.687 | 0.562 |
| FS6801-04-06-NOW | 1/4 | 9/16-18 | 9/16-18 | 0.172 | 0.264 | 0.92 | 1.45 | 0.75 | 0.75 |
| FS6801-04-08-NOW | 1/4 | 9/16-18 | 3/4-16 | 0.172 | 0.378 | 0.97 | 1.6 | 0.938 | 0.75 |
| FS6801-06-04-NOW | 3/8 | 11/16-16 | 7/16-20 | 0.264 | 0.172 | 0.98 | 1.37 | 0.625 | 0.75 |
| FS6801-06-05-NOW | 3/8 | 11/16-16 | 1/2-20 | 0.264 | 0.236 | 0.98 | 1.37 | 0.687 | 0.75 |
| FS6801-06-06-NOW | 3/8 | 11/16-16 | 9/16-18 | 0.264 | 0.264 | 0.98 | 1.45 | 0.75 | 0.75 |
| FS6801-06-08-NOW | 3/8 | 11/16-16 | 3/4-16 | 0.264 | 0.378 | 0.98 | 1.6 | 0.938 | 0.75 |
| FS6801-06-10-NOW | 3/8 | 11/16-16 | 7/8-14 | 0.264 | 0.484 | 1.15 | 1.97 | 1.062 | 1.062 |
| FS6801-06-12-NOW | 3/8 | 11/16-16 | 1-1/16-12 | 0.264 | 0.609 | 1.25 | 2.17 | 1.375 | 1.188 |
| FS6801-08-04-NOW | 1/2 | 13/16-16 | 7/16-20 | 0.378 | 0.172 | 1.1 | 1.36 | 0.625 | 0.75 |
| FS6801-08-06-NOW | 1/2 | 13/16-16 | 9/16-18 | 0.378 | 0.295 | 1.1 | 1.45 | 0.75 | 0.75 |
| FS6801-08-08-NOW | 1/2 | 13/16-16 | 3/4-16 | 0.378 | 0.378 | 1.1 | 1.6 | 0.938 | 0.75 |
| FS6801-08-10-NOW | 1/2 | 13/16-16 | 7/8-14 | 0.378 | 0.484 | 1.21 | 1.97 | 1.062 | 1.062 |
| FS6801-08-12-NOW | 1/2 | 13/16-16 | 1-1/16-12 | 0.378 | 0.609 | 1.32 | 2.17 | 1.375 | 1.188 |
| FS6801-10-08-NOW | 5/8 | 1-14 | 3/4-16 | 0.484 | 0.39 | 1.31 | 1.8 | 0.938 | 1.062 |
| FS6801-10-10-NOW | 5/8 | 1-14 | 7/8-14 | 0.484 | 0.484 | 1.31 | 1.97 | 1.062 | 1.062 |
| FS6801-10-12-NOW | 5/8 | 1-14 | 1-1/16-12 | 0.484 | 0.609 | 1.41 | 2.17 | 1.375 | 1.188 |
| FS6801-12-08-NOW | 3/4 | 1-3/16-12 | 3/4-16 | 0.609 | 0.39 | 1.47 | 1.84 | 0.938 | 1.188 |
| FS6801-12-10-NOW | 3/4 | 1-3/16-12 | 7/8-14 | 0.609 | 0.484 | 1.47 | 2.01 | 1.062 | 1.188 |
| FS6801-12-12-NOW | 3/4 | 1-3/16-12 | 1-1/16-12 | 0.609 | 0.609 | 1.47 | 2.17 | 1.375 | 1.188 |
| FS6801-12-16-NOW | 3/4 | 1-3/16-12 | 1-5/16-12 | 0.609 | 0.811 | 1.62 | 2.35 | 1.625 | 1.438 |
| FS6801-12-20-NOW | 3/4 | 1-3/16-12 | 1-5/8-12 | 0.609 | 1.024 | 1.74 | 2.45 | 1.875 | 1.625 |
| FS6801-16-12-NOW | 1 | 1-7/16-12 | 1-1/16-12 | 0.811 | 0.609 | 1.64 | 2.32 | 1.375 | 1.438 |
| FS6801-16-16-NOW | 1 | 1-7/16-12 | 1-5/16-12 | 0.811 | 0.811 | 1.64 | 2.35 | 1.625 | 1.438 |
| FS6801-16-20-NOW | 1 | 1-7/16-12 | 1-5/8-12 | 0.811 | 1.024 | 1.76 | 2.45 | 1.875 | 1.625 |
| FS6801-16-24-NOW | 1 | 1-7/16-12 | 1-7/8-12 | 0.811 | 1.26 | 1.92 | 2.59 | 2.125 | 1.875 |
| FS6801-20-12-NOW | 1-1/4 | 1-11/16-12 | 1-11/16-12 | 1.024 | 0.609 | 1.76 | 2.42 | 1.375 | 1.625 |
| FS6801-20-16-NOW | 1-1/4 | 1-11/16-12 | 1-5/16-12 | 1.024 | 0.843 | 1.76 | 2.45 | 1.625 | 1.625 |
| FS6801-20-20-NOW | 1-1/4 | 1-11/16-12 | 1-5/8-12 | 1.024 | 1.024 | 1.76 | 2.45 | 1.875 | 1.625 |
| FS6801-24-24-NOW | 1-1/2 | 2-12 | 1-7/8-12 | 1.26 | 1.26 | 1.92 | 2.59 | 2.125 | 1.875 |
