產品中心 首頁 > 美制接頭 > 美制螺紋O型圈密封接頭 > 美制螺紋O型圈密封管接頭 6405系列

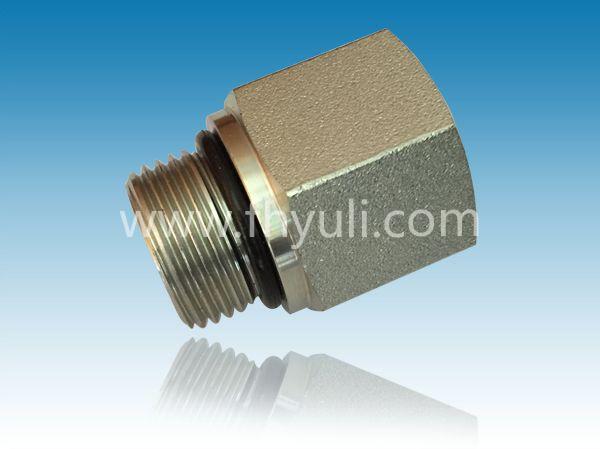

【產品名稱】	美制螺紋O型圈密封管接頭 6405系列
【所屬分類】	美制螺紋O型圈密封接頭
【產品型號】	6405
【產品品牌】	寧吉羽立 NJ
【生產廠家】	寧波市寧吉羽立流體設備有限公司

產品詳情

品牌：	NJ
型號：	6405
材質：	碳鋼
規格：	直管接頭
加工定制	是
適用范圍：	機械設備
螺紋類型：	直螺紋
鏈接方式	螺紋

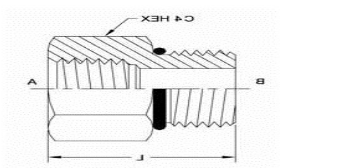

Product ID	Descri ption	TUBEO.D.	BSAEORB	ANPTF	BDRILL	LLGTH	C4HEX
6405-02-02-O	02MORB-02 FPStraight	1/8	5/16-24	1/8-27	0.062	0.93	0.562
6405-02- 02-O-SS	02MORB-02F PStraightStnls	1/8	5/16-24	1/8-27	0.062	0.93	0.562
6405-02-04-O	02MORB-04 FPStraight	1/8	5/16-24	1/4-18	0.062	1.24	0.750
6405-02- 04-O-SS	02MORB-04FP StraightStnls	1/8	5/16-24	1/4-18	0.062	1.24	0.750
6405-03-02-O	03MORB-0 2FPStraight	-	-	-	-	-	-
6405-03-04-O	03MORB-04 FPStraight	3/16	3/8-24	1/4-18	0.125	1.24	0.750
6405-03- 04-O-SS	MB-FPSTRT	3/16	3/8-24	1/4-18	0.125	1.24	0.750
6405-04-02-O	04MORB-02 FPStraight	1/4	7/16-20	1/8-27	0.172	0.99	0.562
6405-04 -02-O-SS	04MORB-02FP StraightStnls	1/4	7/16-20	1/8-27	0.172	0.99	0.562
6405-04-04-O	04MORB-0 4FPStraight	1/4	7/16-20	1/4-18	0.172	1.31	0.750
6405-04- 04-O-SS	04MORB-04FP StraightStnls	1/4	7/16-20	1/4-18	0.172	1.31	0.750
6405-04-06-O	04MORB-06FPStraight	1/4	7/16-20	3/8-18	0.172	1.37	0.875
6405-04- 06-O-SS	04MORB-06FPStraightStnls	1/4	7/16-20	3/8-18	0.172	1.37	0.875
6405-05-02-O	05MORB-02FPStraight	5/16	1/2-20	1/8-27	0.234	0.99	0.625
6405-05-02-O-SS	05MORB-02FP StraightStnls	5/16	1/2-20	1/8-27	0.234	0.99	0.625
6405-05-04-O	05MORB-04FPStraight	5/16	1/2-20	1/4-18	0.234	1.20	0.750
6405-05- 04-O-B	06MORB-04F PStraightBrass	5/16	1/2-20	1/4-18	0.234	1.20	0.750
6405-05- 04-O-SS	05MORB-04FPStraightStnls	5/16	1/2-20	1/4-18	0.234	1.20	0.750
6405-05-06-O	05MORB-06FPStraight	5/16	1/2-20	3/8-18	0.234	1.37	0.875
6405-06-02-O	06MORB-02FPStraight	3/8	9/16-18	1/8-27	0.297	1.02	0.688
6405-06- 02-O-SV	THEOVERALLLENGTHO NTHISPARTMUSTBE.73	3/8	9/16-18	1/8-27	0.730	18.54	0.330
6405-06-04-O	06MORB-04FPStraight	3/8	9/16-18	1/4-18	0.297	1.23	0.750
6405-06- 04-O-SS	06MORB-04FPStraightStnls	3/8	9/16-18	1/4-18	0.297	1.23	0.750
6405-06-06-O	06MORB-06FPStraight	3/8	9/16-18	3/8-18	0.297	1.40	0.875
6405-06- 06-O-SS	06MORB-06FPStraightStnls	3/8	9/16-18	3/8-18	0.297	1.40	0.875
6405-06 -08-O	06MORB-08FPStraight	3/8	9/16-18	1/2-14	0.297	1.63	1.125
6405-06- 08-O-SS	06MORB-08FPStraightStnls	3/8	9/16-18	1/2-14	0.297	1.63	1.125
6405-08 -02-O	08MORB-02FPStraight	1/2	3/4-16	1/8-27	0.391	1.07	0.875
6405-08-02-O-SS	08MORB-02FPStraightStnls	1/2	3/4-16	1/8-27	0.391	1.07	0.875
6405-08-04-O	08MORB-04FPStraight	1/2	3/4-16	1/4-18	0.391	1.28	0.875
6405-08-04-O-SS	08MORB-04FPStraightStnls	1/2	3/4-16	1/4-18	0.391	1.28	0.875
6405-08-06-O	08MORB-06FPStraight	1/2	3/4-16	3/8-18	0.391	1.33	0.875
6405-08-06-O-SS	08MORB-06FPStraightStnls	1/2	3/4-16	3/8-18	0.391	1.33	0.875
6405-08-08-O	08MORB-08FPStraight	1/2	3/4-16	1/2-14	0.391	1.71	1.125
6405-08-08-O-SS	08MORB-08FPStraightStnls	1/2	3/4-16	1/2-14	0.391	1.71	1.125
6405-08-12-O	08MORB-12FPStraight	1/2	3/4-16	3/4-14	0.391	1.78	1.375
6405-10-04-O	10MORB-04FPStraight	5/8	7/8-14	1/4-18	0.484	1.34	1.000
6405-10- 04-O-SS	10MORB-04F PStraightStnls	5/8	7/8-14	1/4-18	0.484	1.34	1.000
6405- 10-06-O	10MORB-06FPStraight	5/8	7/8-14	3/8-18	0.484	1.40	1.000
6405-10- 06-O-SS	10MORB-06FPStraightStnls	5/8	7/8-14	3/8-18	0.484	1.40	1.000
6405-10 -08-O	10MORB-08FPStraight	5/8	7/8-14	1/2-14	0.484	1.63	1.125
6405-10- 08-O-SS	10MORB-08FPStraightStnls	5/8	7/8-14	1/2-14	0.484	1.63	1.125
6405-10 -12-O	10MORB-12FPStraight	5/8	7/8-14	3/4-14	0.484	1.84	1.375
6405-10- 12-O-SS	10MORB-12FPStraightStnls	5/8	7/8-14	3/4-14	0.484	1.84	1.375
6405-12 -04-O	12MORB-04FPStraight	3/4	1-1/16-12	1/4-18	0.609	1.43	1.250
6405-12-04-O-SS	12MORB-04FPStraightStnls	3/4	1-1/16-12	1/4-18	0.609	1.43	1.250
6405-12-06-O	12MORB-06FPStraight	3/4	1-1/16-12	3/8-18	0.609	1.49	1.250
6405-12-06-O-SS	12MORB-06FPStraightStnls	3/4	1-1/16-12	3/8-18	0.609	1.49	1.250
6405-12-08-O	12MORB-08FPStraight	3/4	1-1/16-12	1/2-14	0.609	1.41	1.250
6405-12-08-O-SS	12MORB-08FPStraightStnls	3/4	1-1/16-12	1/2-14	0.609	1.72	1.250
6405-12-12-O	12MORB-12FPStraight	3/4	1-1/16-12	3/4-14	0.609	1.78	1.375
6405-12- 12-O-SS	12MORB-12FPStraightStnls	3/4	1-1/16-12	3/4-14	0.609	1.78	1.375
6405-12-16-O	12MORB-16FPStraight	3/4	1-1/16-12	1-11-1/2	0.609	2.18	1.625
6405-12-16-O-SS	12MORB-16FP StraightStnls	3/4	1-1/16-12	1-11-1/2	0.609	2.18	1.625
6405-14-08-O	14MORB-08FPStraight	7/8	1-3/16-12	1/2-14	0.719	1.72	1.375
6405-14-08-O-SS	14MORB-08FP StraightStnls	7/8	1-3/16-12	1/2-14	0.719	1.72	1.375
6405-14-12-O	14MORB-12FPStraight	7/8	1-3/16-12	3/4-14	0.719	1.78	1.375
6405-14- 12-O-SS	14MORB-12 FPStraightStnls	7/8	1-3/16-12	3/4-14	0.719	1.78	1.375
6405-14-16-O	14MORB-16FPStraight	7/8	1-3/16-12	1-11-1/2	0.719	2.18	1.625
6405-14- 16-O-SS	14MORB-16FPStraightStnls	7/8	1-3/16-12	1-11-1/2	0.719	2.18	1.625
6405-16-04-O	16MORB-04FPStraight	1	1-5/16-12	1/4-18	0.844	1.43	1.500
6405-16-04-O-SS	16MORB-04F PStraightStnls	1	1-5/16-12	1/4-18	0.844	1.43	1.500
6405-16-06-O	16MORB-06FPStraight	1	1-5/16-12	3/8-18	0.844	1.49	1.500
6405-16-08-O	16MORB-08FPStraight	1	1-5/16-12	1/2-14	0.844	1.00	1.500
6405-16- 08-O-SS	16MORB-08FPStraightStnls	1	1-5/16-12	1/2-14	0.844	1.72	1.500
6405-16-12-O	16MORB-12FPStraight	1	1-5/16-12	3/4-14	0.844	1.620	1.500
6405-16-12-O-B	16MORB-12 FPStraightBrass	1	1-5/16-12	3/4-14	0.844	1.78	1.500
6405-16-12-O-SS	16MORB-12FPStraightStnls	1	1-5/16-12	3/4-14	0.844	1.78	1.500
6405-16-16-O	16MORB-16FPStraight	1	1-5/16-12	1-11-1/2	0.844	1.90	1.625
6405-16-16-O-SS	16MORB-16FPStraightStnls	1	1-5/16-12	1-11-1/2	0.844	2.03	1.625
6405-16-20-O	16MORB-20FPStraight	1	1-5/16-12	1-1/4-11-1/2	0.844	2.30	2.000
6405-16-24-O	16MORB-24FPStraight	1	1-5/16-12	1-1/2-11-1/2	0.844	2.30	2.375
6405-16-24-O-SS	16MORB-24FPStraightStnls	1	1-5/16-12	1-1/2-11-1/2	0.844	2.30	2.375
6405-20-08-O	20MORB-08FPStraight	1-1/4	1-5/8-12	1/2-14	1.078	1.72	1.875
6405-20-12-O	20MORB-12FPStraight	1-1/4	1-5/8-12	3/4-14	1.078	1.78	1.875
6405-20-12-O-B	20MORB-12FPStraightBrass	1-1/4	1-5/8-12	3/4-14	1.078	1.78	1.875
6405-20-12-O-SS	20MORB-12FPStraightStnls	1-1/4	1-5/8-12	3/4-14	1.078	1.78	1.875
6405-20-16-O	20MORB-16FPStraight	1-1/4	1-5/8-12	1-11-1/2	1.078	2.03	1.875
6405-20-16-O-SS	20MORB-16FPStraightStnls	1-1/4	1-5/8-12	1-11-1/2	1.078	2.03	1.875
6405-20-20-O	20MORB-20FPStraight	1-1/4	1-5/8-12	1-1/4-11-1/2	1.078	2.000	2.000
6405-20-20-O-SS	20MORB-20FPStraightStnls	1-1/4	1-5/8-12	1-1/4-11-1/2	1.078	2.000	2.000
6405-20-24-O	20MORB-24FPStraight	1-1/4	1-5/8-12	1-1/2-11-1/2	1.078	2.30	2.375
6405-20-24-O-SS	20MORB-24FPStraightStnls	1-1/4	1-5/8-12	1-1/2-11-1/2	1.078	2.30	2.375
6405-20-32-O	20MORB-32FPStraight	1-1/4	1-5/8-12	2-11-1/2	1.078	2.40	2.875
6405-24-04-O	24MORB-04FPStraight	1-1/2	1-7/8-12	1/4-18	1.312	1.43	2.125
6405-24-12-O	24MORB-12FPStraight	1-1/2	1-7/8-12	3/4-14	1.312	1.78	2.125
6405-24-12-O-SS	24MORB-12FPStraightStnls	1-1/2	1-7/8-12	3/4-14	1.312	1.78	2.125
6405-24-16-O	24MORB-16FPStraight	1-1/2	1-7/8-12	1-11-1/2	1.312	2.03	2.125
6405-24-16-O-SS	24MORB-16FPStraightStnls	1-1/2	1-7/8-12	1-11-1/2	1.312	2.03	2.125
6405-24-20-O	24MORB-20FPStraight	1-1/2	1-7/8-12	1-1/4-11-1/2	1.312	2.12	2.125
6405-24-20-O-SS	24MORB-20FPStraightStnls	1-1/2	1-7/8-12	1-1/4-11-1/2	1.312	2.12	2.125
6405-24-24-O	24MORB-24FPStraight	1-1/2	1-7/8-12	1-1/2-11-1/2	1.312	2.30	2.375
6405-24-24-O-SS	24MORB-24FPStraightStnls	1-1/2	1-7/8-12	1-1/2-11-1/2	1.312	2.30	2.375
6405-32-16-O	32MORB-16FPStraight	2	2-1/2-12	1-11-1/2	1.781	1.430	2.750
6405-32-20-O	32MORB-20FPStraight	2	2-1/2-12	1-1/4-11-1/2	1.781	2.12	2.750
6405-32-24-O	32MORB-24FPStraight	2	2-1/2-12	1-1/2-11-1/2	1.781	2.12	2.750
6405-32-24-O-SS	32MORB-24FPStraightStnls	2	2-1/2-12	1-1/2-11-1/2	1.781	2.12	2.750
6405-32-32-O	32MORB-32FPStraight	2	2-1/2-12	2-11-1/2	1.781	2.24	2.875
6405-32-32-O-SS	32MORB-32FPStraightStnls	2	2-1/2-12	2-11-1/2	1.781	2.24	2.875
