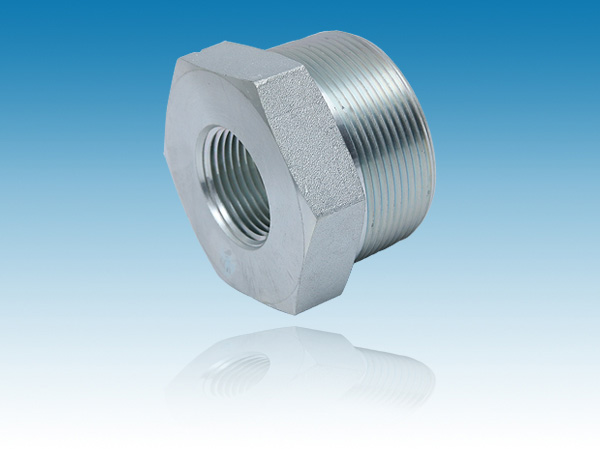

【產品名稱】 美制NPTF錐螺紋油塞接頭 5406系列
【所屬分類】 美制NPTF錐螺紋接頭 【產品型號】 5406 【產品品牌】 寧吉羽立 NJ 【生產廠家】 寧波市寧吉羽立流體設備有限公司
產品詳情
| Product ID | Description | A1 NPTF | A2 NPTF | A1 DRILL | L LGTH | C HEX |
| 5406-04-02 | 04MP-02FP Reducer Bushing | 1/4-18 | 1/8-27 | 0.281 | 0.85 | 0.625 |
| 5406-06-02 | 06MP-02FP Reducer Bushing | 3/8-18 | 1/8-27 | 0.333 | 0.85 | 0.750 |
| 5406-06-04 | 06MP-04FP Reducer Bushing | 3/8-18 | 1/4-18 | 0.406 | 0.85 | 0.750 |
| 5406-08-02 | 08MP-02FP Reducer Bushing | 1/2-14 | 1/8-27 | 0.333 | 1.10 | 0.875 |
| 5406-08-04 | 08MP-04FP Reducer Bushing | 1/2-14 | 1/4-18 | 0.431 | 1.10 | 0.875 |
| 5406-08-06 | 08MP-06FP Reducer Bushing | 1/2-14 | 3/8-18 | 0.531 | 1.10 | 0.875 |
| 5406-12-02 | 12MP-02FP Reducer Bushing | 3/4-14 | 1/8-27 | 0.333 | 1.17 | 1.125 |
| 5406-12-04 | 12MP-04FP Reducer Bushing | 3/4-14 | 1/4-18 | 0.431 | 1.17 | 1.125 |
| 5406-12-06 | 12MP-06FP Reducer Bushing | 3/4-14 | 3/8-18 | 0.571 | 1.17 | 1.125 |
| 5406-12-08 | 12MP-08FP Reducer Bushing | 3/4-14 | 1/2-14 | 0.697 | 1.17 | 1.125 |
| 5406-16-02 | 16MP-02FP Reducer Bushing | 1-11-1/2 | 1/8-27 | 0.333 | 1.36 | 1.375 |
| 5406-16-04 | 16MP-04FP Reducer Bushing | 1-11-1/2 | 1/4-18 | 0.431 | 1.36 | 1.375 |
| 5406-16-06 | 16MP-06FP Reducer Bushing | 1-11-1/2 | 3/8-18 | 0.571 | 1.36 | 1.375 |
| 5406-16-08 | 16MP-08FP Reducer Bushing | 1-11-1/2 | 1/2-14 | 0.697 | 1.36 | 1.375 |
| 5406-16-12 | 16MP-12FP Reducer Bushing | 1-11-1/2 | 3/4-14 | 0.907 | 1.36 | 1.375 |
| 5406-20-04 | 20MP-04FP Reducer Bushing | 1-1/4-11-1/2 | 1/4-18 | 0.431 | 1.47 | 1.750 |
| 5406-20-06 | 20MP-06FP Reducer Bushing | 1-1/4-11-1/2 | 3/8-18 | 0.571 | 1.47 | 1.750 |
| 5406-20-08 | 20MP-08FP Reducer Bushing | 1-1/4-11-1/2 | 1/2-14 | 0.697 | 1.47 | 1.750 |
| 5406-20-12 | 20MP-12FP Reducer Bushing | 1-1/4-11-1/2 | 3/4-14 | 0.907 | 1.47 | 1.750 |
| 5406-20-16 | 20MP-16FP Reducer Bushing | 1-1/4-11-1/2 | 1-11-1/2 | 1.142 | 1.47 | 1.750 |
| 5406-24-02 | 24MP-02FP Reducer Bushing | 1-1/2-11-1/2 | 1/8-27 | 0.333 | 1.57 | 2.000 |
| 5406-24-04 | 24MP-04FP Reducer Bushing | 1-1/2-11-1/2 | 1/4-18 | 0.431 | 1.57 | 2.000 |
| 5406-24-06 | 24MP-06FP Reducer Bushing | 1-1/2-11-1/2 | 3/8-18 | 0.571 | 1.57 | 2.000 |
| 5406-24-08 | 24MP-08FP Reducer Bushing | 1-1/2-11-1/2 | 1/2-14 | 0.697 | 1.57 | 2.000 |
| 5406-24-12 | 24MP-12FP Reducer Bushing | 1-1/2-11-1/2 | 3/4-14 | 0.907 | 1.57 | 2.000 |
| 5406-24-16 | 24MP-16FP Reducer Bushing | 1-1/2-11-1/2 | 1-11-1/2 | 1.142 | 1.57 | 2.000 |
| 5406-24-20 | 24MP-20FP Reducer Bushing | 1-1/2-11-1/2 | 1-1/4-11-1/2 | 1.486 | 1.57 | 2.000 |
| 5406-32-04 | 32MP-04FP Reducer Bushing | 2-11-1/2 | 1/4-18 | 0.431 | 1.75 | 2.500 |
| 5406-32-06 | 32MP-06FP Reducer Bushing | 2-11-1/2 | 3/8-18 | 0.571 | 1.75 | 2.500 |
| 5406-32-08 | 32MP-08FP Reducer Bushing | 2-11-1/2 | 1/2-14 | 0.697 | 1.75 | 2.500 |
| 5406-32-12 | 32MP-12FP Reducer Bushing | 2-11-1/2 | 3/4-14 | 0.907 | 1.75 | 2.500 |
| 5406-32-16 | 32MP-16FP Reducer Bushing | 2-11-1/2 | 1-11-1/2 | 1.142 | 1.75 | 2.500 |
| 5406-32-20 | 32MP-20FP Reducer Bushing | 2-11-1/2 | 1-1/4-11-1/2 | 1.486 | 1.75 | 2.500 |
| 5406-32-24 | 32MP-24FP Reducer Bushing | 2-11-1/2 | 1-1/2-11-1/2 | 1.720 | 1.75 | 2.500 |
| 5406-40-32 | 40MP-32FP Reducer Bushing | 2-1/2 - 8 | 2-11-1/2 | 2.204 | 2.37 | 3.000 |
| 5406-48-06 | 48MP-06FP Reducer Bushing | 3- 8 | 3/8-18 | 0.571 | 2.43 | 3.750 |
